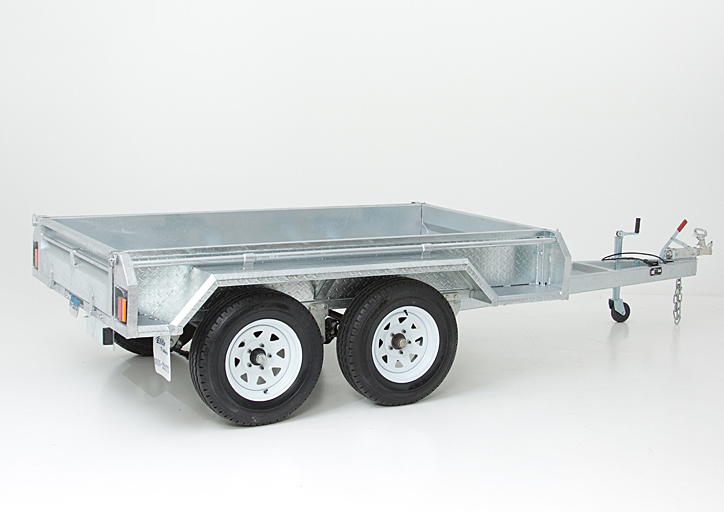

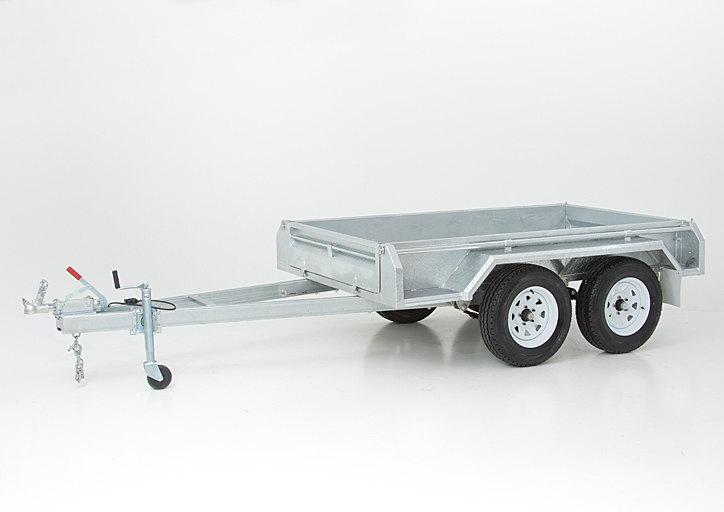

8x4 Heavy Duty Tandem Braked


Key Features:


    Fully Welded All Checker Plate Body
    2.5mm Checker Plate Guards and Side Step
    2.5mm one piece Checker Plate floor

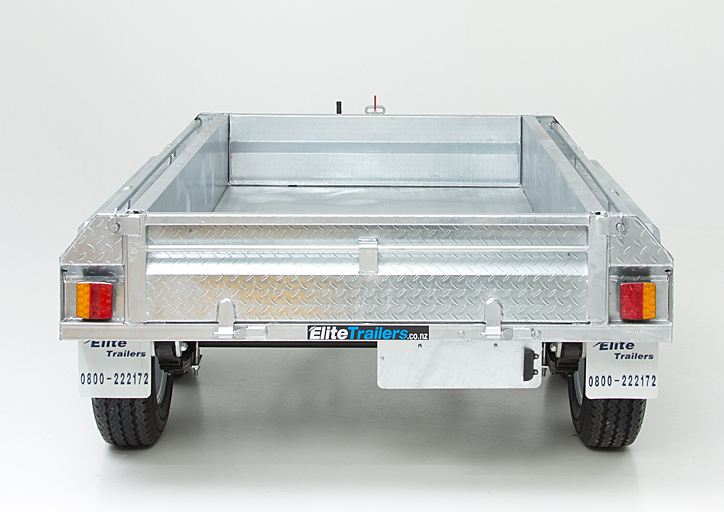

    Recessed Tail Lights for protection


    8x4 Tandem axle trailer with brakes
    Hot dipped galvanized steel construction
    Inside dimensions: 2440mm x 1220mm x 300mm

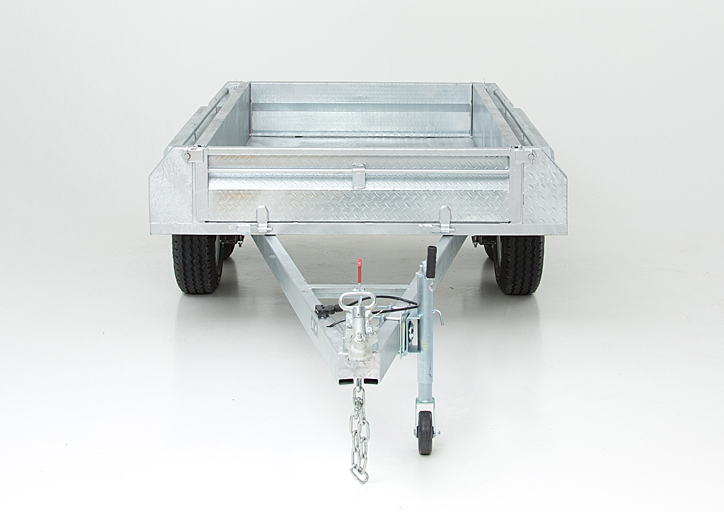

    RHS box section draw bar 100x50x3mm
    RHS box section chassis frame - NOT angle steel
    50mm Corner pockets for easy fitting of cages & frames
    2.5mm one piece checker plate floor

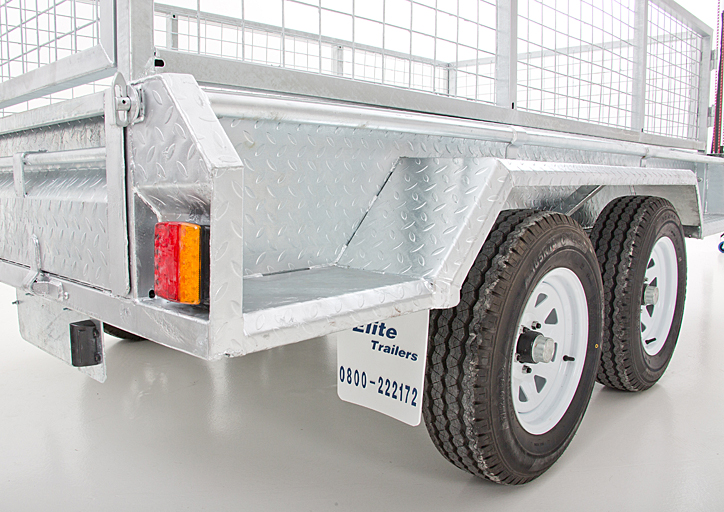

    2.5mm Checker plate guards and side step
    Full length rope rails on sides, front & rear
    Fully opening front & rear tail doors with anti rattle bushes
    Spare wheel bracket on draw bar
    14” Wheels with 185/70R14C 8ply Commercial tyres

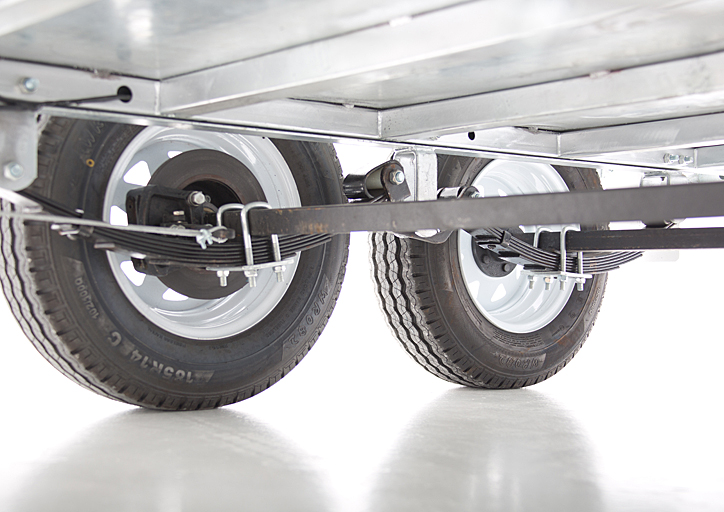

    6 leaf Captive suspension for reduced road noise
    Rocker suspension for load sharing
    40mm Solid one piece axles – Not tube or RHS
    NZ Supplied ALKO wheel bearings
    Over-ride Disc Brakes

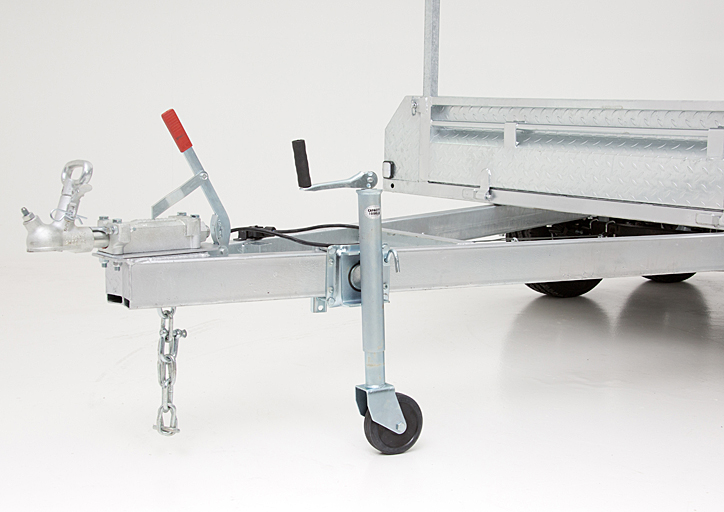

    Folding jockey wheel
    NZ standard 1 7/8" ALKO coupler
    10-30v Multivolt LED lights
    NZ standard 7 pin flat plug
    Mud Flaps
    GVW: 2000KG
    TARE: 420KG
    NZ LTSA compliant

    NOTE: WOF & REG. Not included


    Trailer & Cage: $3645

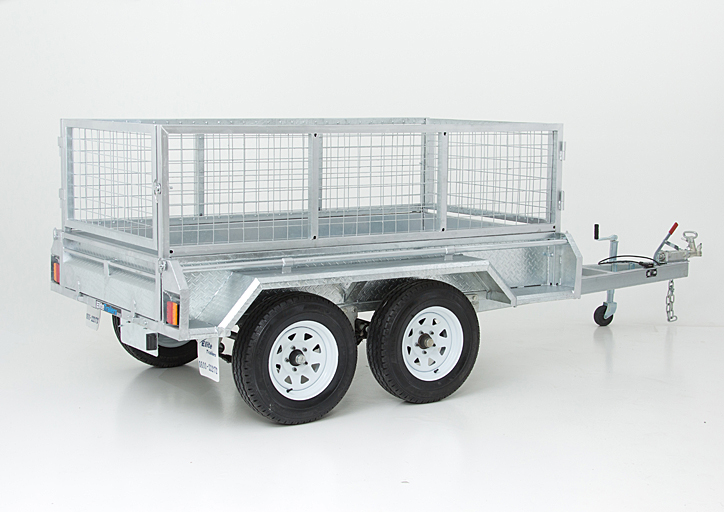

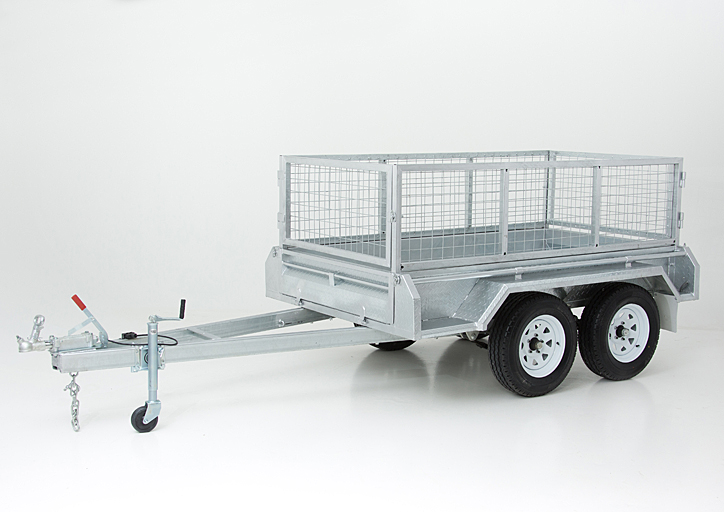

    Removable galvanised cage 600mm high: $450
    Sliding Rear Stock gate with extension posts (increases height to 1025mm): $475
    H-Frames - hot dipped galvanized (pair): $295
    14” Spare wheel: $170


    12 Month Replacement parts warranty
    24 Month Structural warranty
